MSW

WASTE BALING PRESS / WASTE BALER

IMABE has more than 45 years of experience developing their presses / balers for urban solid waste and industrial solid waste. Our systems and experience have a proven track record and have been most successful in compressing all types of solid waste to reduce transport charges and minimize space in landfills.

Balers from IMABE for MSW are designed specifically to meet the difficult task that is required to compress and bale these residues.

HIGH DENSITY BALING PRESS / HIGH DENSITY BALER

High density solid waste balers are the final step before sending waste to landfill. They are designed and manufactured for this difficult job and provide the end-results required to extend the landill life and lower the operating costs of final disposal.

Waste balers for MSW

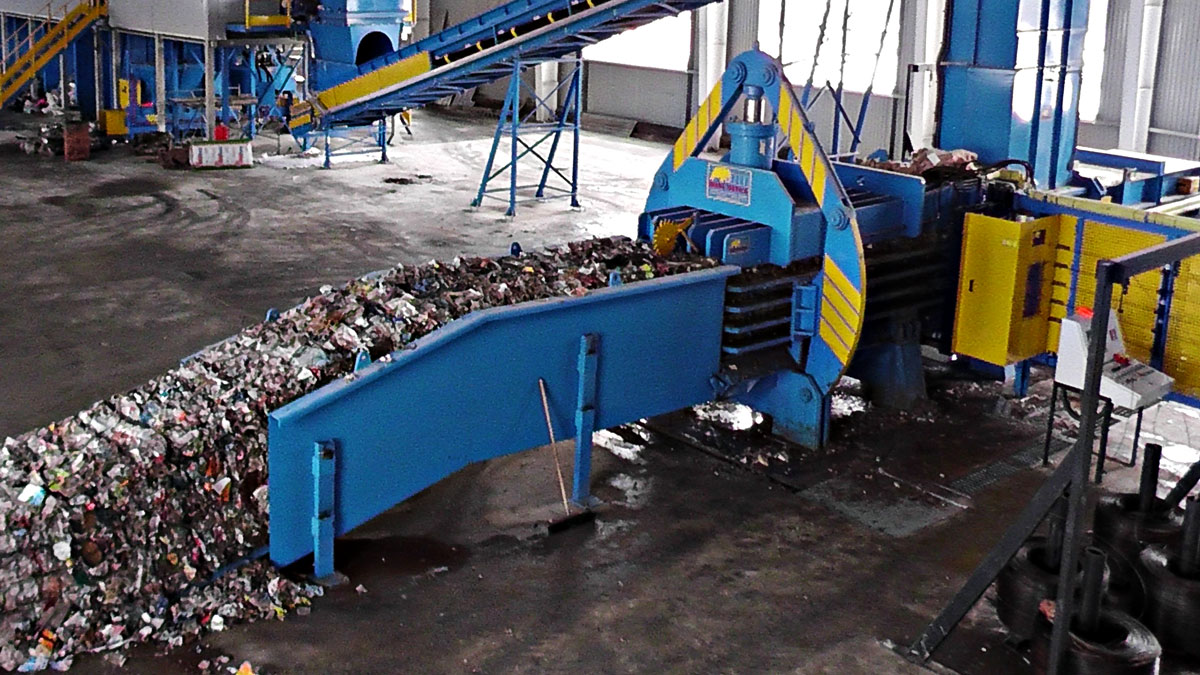

H-100/2000 R

Characteristics:

Compaction force	110 T
Main motors power	55 kW / 75 HP
Production	< 20T/h
Bale section	43.3" x 33.5"
Feeding opening (L x W)	71" x 39.4"
Tying system	Horizontal, 5 wires

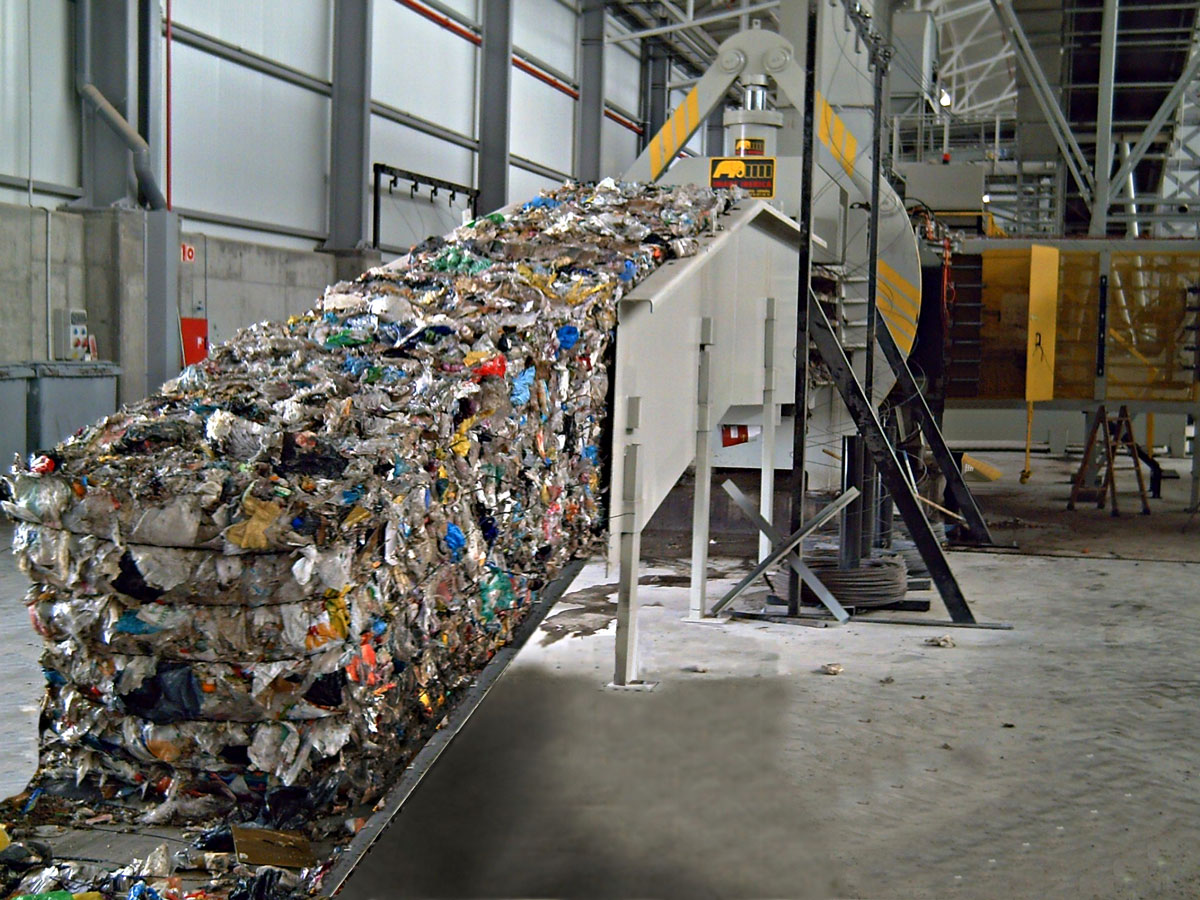

H-120/2000 R

Characteristics:

Compaction force	132 T
Main motors power	2 x 45 kW / 2 x 60 HP
Production	< 20T/h
Bale section	43.3" x 33.5"
Feeding opening (L x W)	71" x 43.3"
Tying system	Horizontal, 5 wires

H-150/4000 RS

Characteristics:

Compaction force	165 T
Main motors power	2 x 55 kW / 2 x 75 HP
Production	< 30T/h
Bale section	43.3" x 43.3"
Feeding opening (L x W)	71" x 43.3"
Tying system	Horizontal, 5 wires

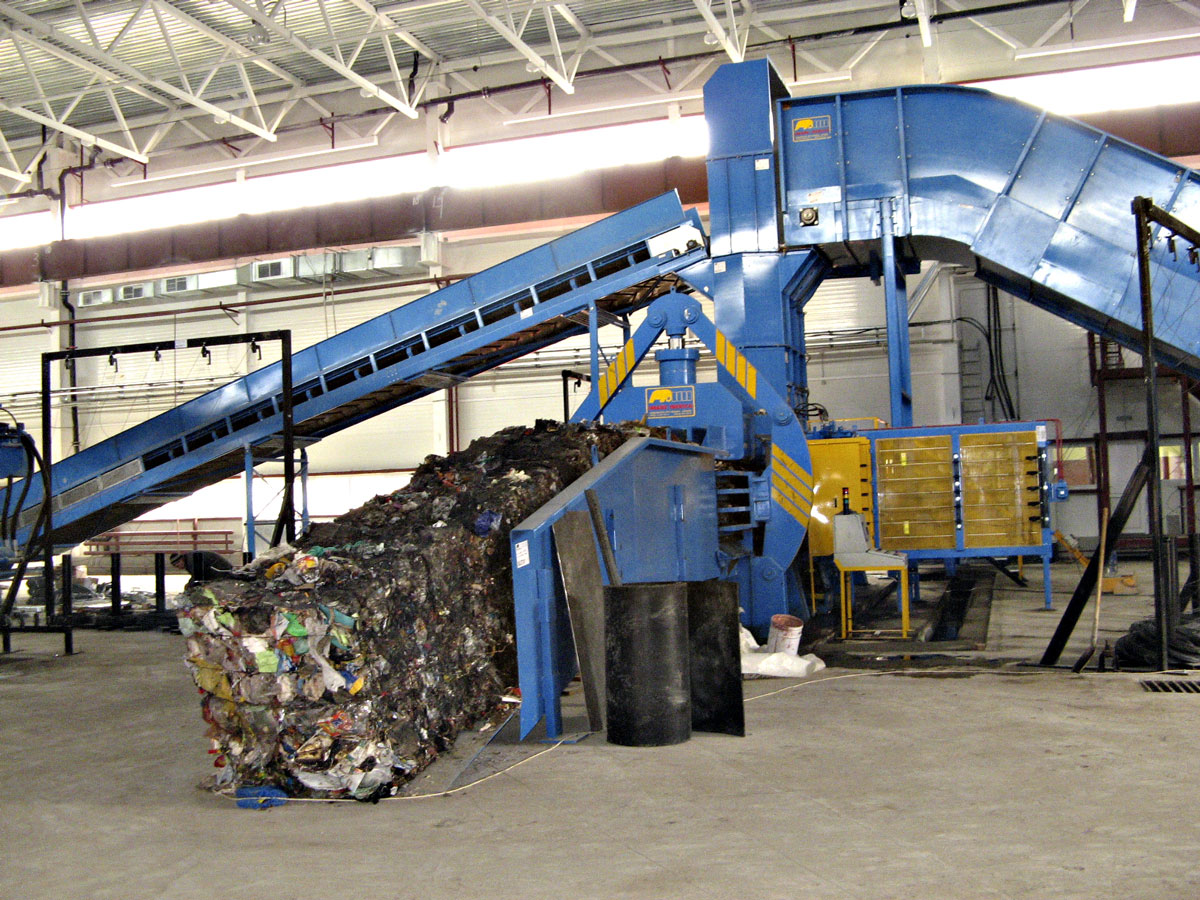

H-200/5000 RS

Characteristics:

Compaction force	220 T
Main motors power	3 x 55 kW / 3 x 75 HP
Production	< 40T/h
Bale section	43.3" x 43.3"
Feeding opening (L x W)	71" x 43.3"
Tying system	Horizontal, 5 wires

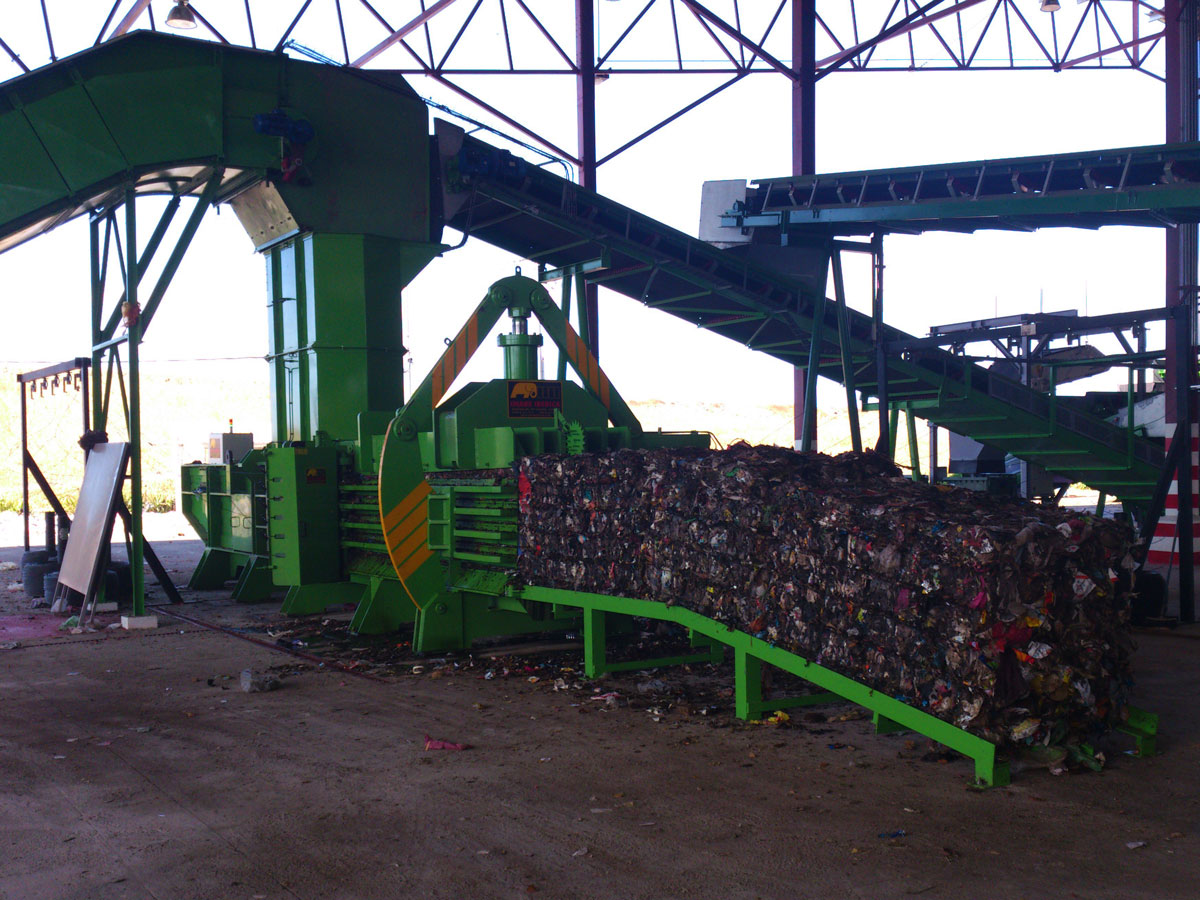

H-240/5000 RS

Characteristics:

Compaction force	275 T
Main motors power	3 x 55 kW / 3 x 75 HP
Production	< 50T/h
Bale section	43.3" x 43.3"
Feeding opening (L x W)	71" x 43.3"
Tying system	Horizontal, 5 wires

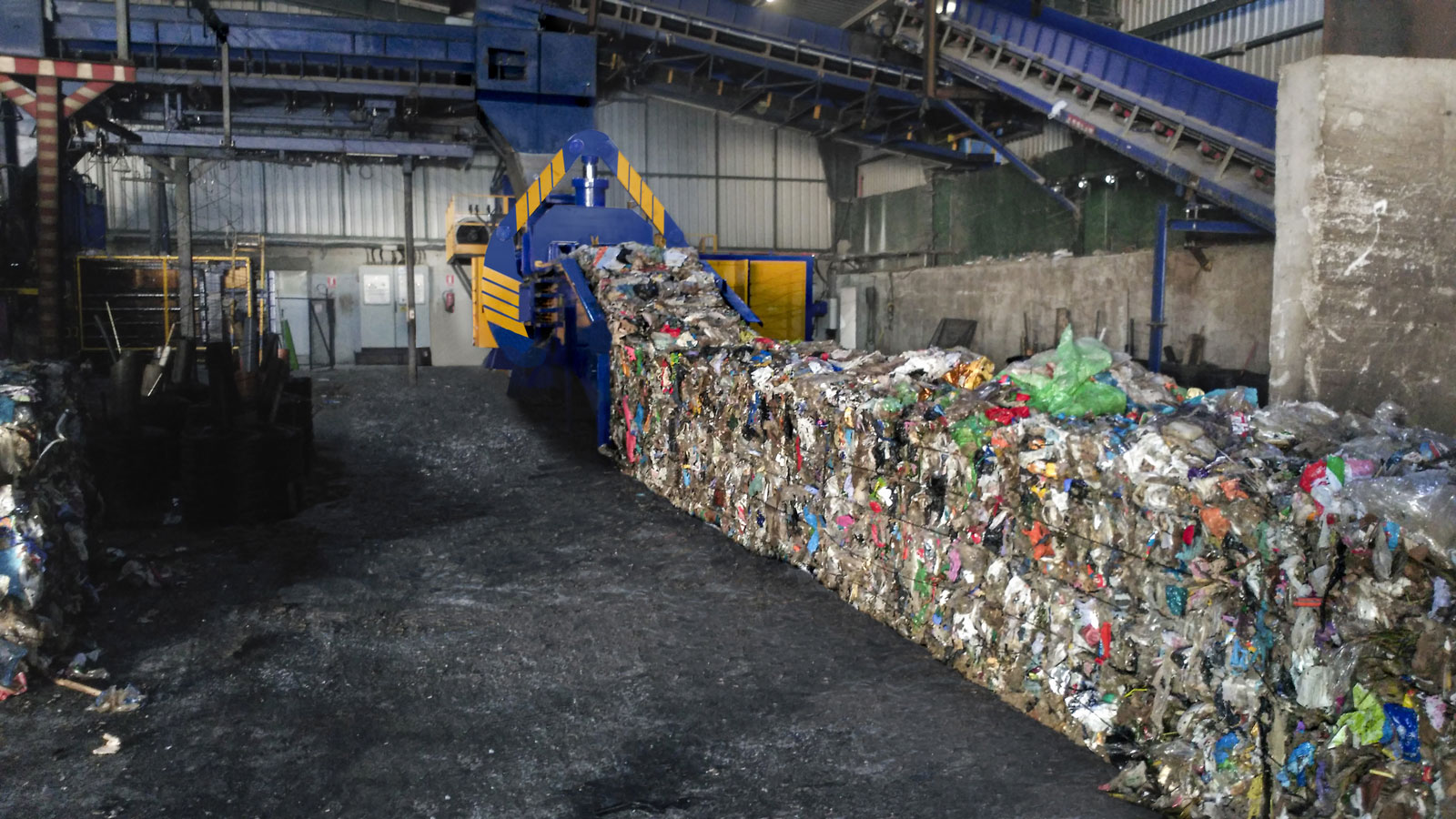

H-300/5000 RS

Characteristics:

Compaction force	297 T
Main motors power	4 x 55,5 kW / 4 x 75 HP
Production	< 60T/h
Bale section	43.3" x 43.3"
Feeding opening (L x W)	71" x 43.3"
Tying system	Horizontal, 5 wires
